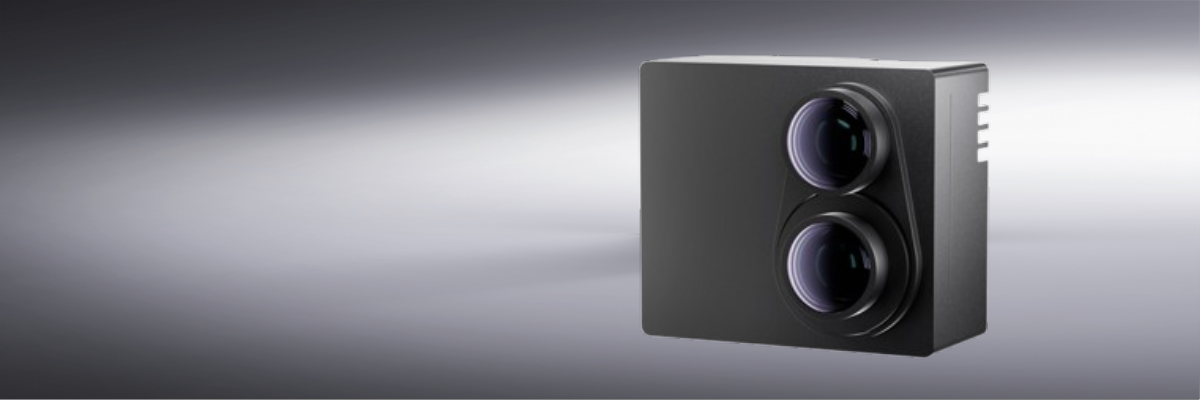

Hesai FTX
This ultra-compact and lightweight solid state LiDAR sensor is available in two ultra-wide Horizontal Field of View options.
The Hesai FTX is excellent for short-range blind spot coverage for autonomous and robotic applications. Delivering excellent resolution performance, with a point rate 2.5 times higher than the previous generation, the Hesai FTX effectively covers blind spots around the vehicle and accurately detects obstacles such as strollers, e-bikes and pedestrians.
Technical specifications
FTX (HFOV 180°)
- Range capability: 20m (@ 10% Reflectivity)
- Horizontal Field of View: 180°
- Vertical Field of View: 140°
- Resolution: 0.62° x 0.62°
- Data Points (Single Return) per second: 430,000
- Frame Rate: 10Hz
- Dimensions: H 55 x W 60 x D 38.7mm
- Weight: 160g
FTX (HFOV 140°)
- Range capability: 30m (@ 10% Reflectivity)
- Horizontal Field of View: 140°
- Vertical Field of View: 105°
- Resolution: 0.56° x 0.56°
- Data Points (Single Return) per second: 492,000
- Frame Rate: 10Hz
- Dimensions: H 55 x W 60 x D 32mm
- Weight: 160g
Recommended applications
- Autonomous mobility – ADAS / robotrucking / robotaxi
- Robotics
- Warehousing and logistics
Downloads and media
- Hesai 3D LiDAR sensor catalog
- Hesai FTX brochure
