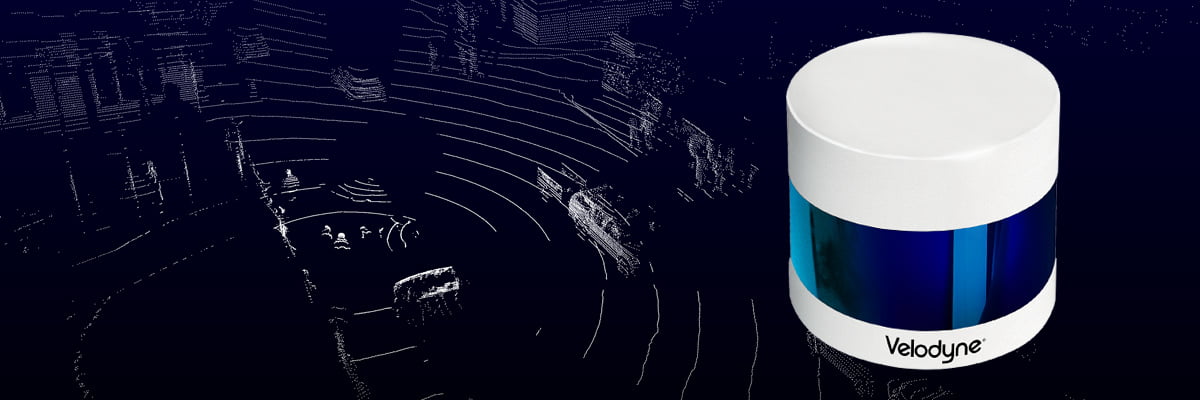

Velodyne Puck 32MR (VLP-32MR)

Find out more today

3D LiDAR sensor for mid-range applications

The new Velodyne Puck 32MR (VLP-32MR) offers a cost effective solution for low speed applications. By utilising Velodyne’s patented technology it provides the same level of detail as the Velodyne Ultra Puck (VLP-32). The new Puck 32MR has a reduced range of up to 120m and lower price. It uses proven Class 1 eye-safe technology using 905 nanometer (nm) wavelength laser.

Recommended applications

The Puck 32MR with its range of up to 120 meters is ideal for uses at lower speeds. For instance with autonomous industrial vehicles, robotics and shuttles. By using surround view perception in all light conditions this LiDAR sensor is suitable for situations both inside and outside.

The VLS-32 (Puck 32MR) detects pavements, kerbs, vehicles, people, cyclists and other objects for use on roads. The sensor also accurately detects obstacles in warehouse aisles and in other industrial applications. This new sensor provides industry leading reliability in a compact size.

Technical specification

  • 32 channels
  • Dual returns
  • Range: Up to 120m @10% reflectivity
  • Up to ~1.2 million points per second
  • 40° Field of View: +15° to -25° Vertical
  • Field of View: 360° Horizontal
  • Frame Rate: 5Hz to 20Hz
  • Low power consumption
  • Protective design

The Velodyne family of LiDAR Scanners are all CE marked to provide assurance that they meet all required European legislation.

Download the Velodyne Puck 32MR Datasheet



Mapix review

Read our full review article on the Puck 32MR where we also compare this scanner with other LiDAR sensors in the Velodyne range.

Read review article here



Mapix test dataset

We have evaluated the Puck 32MR at our own test location in Leith, Edinburgh, Scotland. The location has been specifically chosen as it is an urban setting with roads, buildings, pedestrians and vehicles.

Download the Mapix test data captured with the Puck 32MR at our test location in Leith, Edinburgh, Scotland. (Please be aware this is a very large file.)

Request test dataset here







Price indication ££

(relative to the full Velodyne product portfolio)
