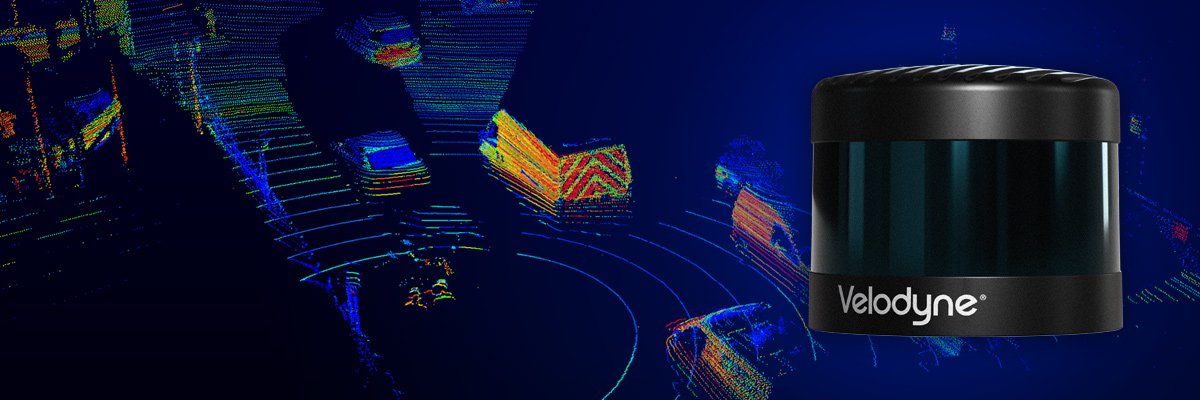

Close up of Velodyne VLS-128 and point cloud of busy street displaying 7 vehicles.

Velodyne Alpha Puck (VLS-128)

Request a Quote

For automotive clients

The Velodyne Alpha Prime (VLS-128) is the world’s most advanced and capable 3D LiDAR sensor for autonomous vehicles. As a culmination of ten years of LiDAR development and learning from millions of road miles, the Alpha Prime (VLS-128) is a sensor specifically made for autonomous driving and advanced vehicle safety at highway speeds. It provides real-time 3D data up to 0.1-degree vertical and horizontal resolution with up to 300-metre range and 360° surround view. The Alpha Prime (VLS-128) provides the range, resolution and accuracy required by the most advanced autonomous vehicle programmes in the world.

Technical specification

  • Field of View: 360° Horizontal
  • Field of View: +15° to -25° Vertical
  • Range: Up to 300m
  • Minimum Angular Resolution: 0.11°
  • Up to 4 Return Modes
  • Up to ~9.6 million points per second
  • Environmental Protection: IP67
  • High Volume, Automotive Grade Contract Pricing
  • Dimensions:
  • Weight:

The Velodyne LiDAR scanners are all CE marked to provide assurance that it meets all required European legislation.


Alpha Prime (VLS-128) in action
